1 HP 3 Phase Electric Motor 143T Frame 1800 RPM TEFC 230/460V Worldwide Electric PEWWE1-18-143T
Product details
| Management number | 221096656 | Release Date | 2026/05/03 | List Price | $131.98 | Model Number | 221096656 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

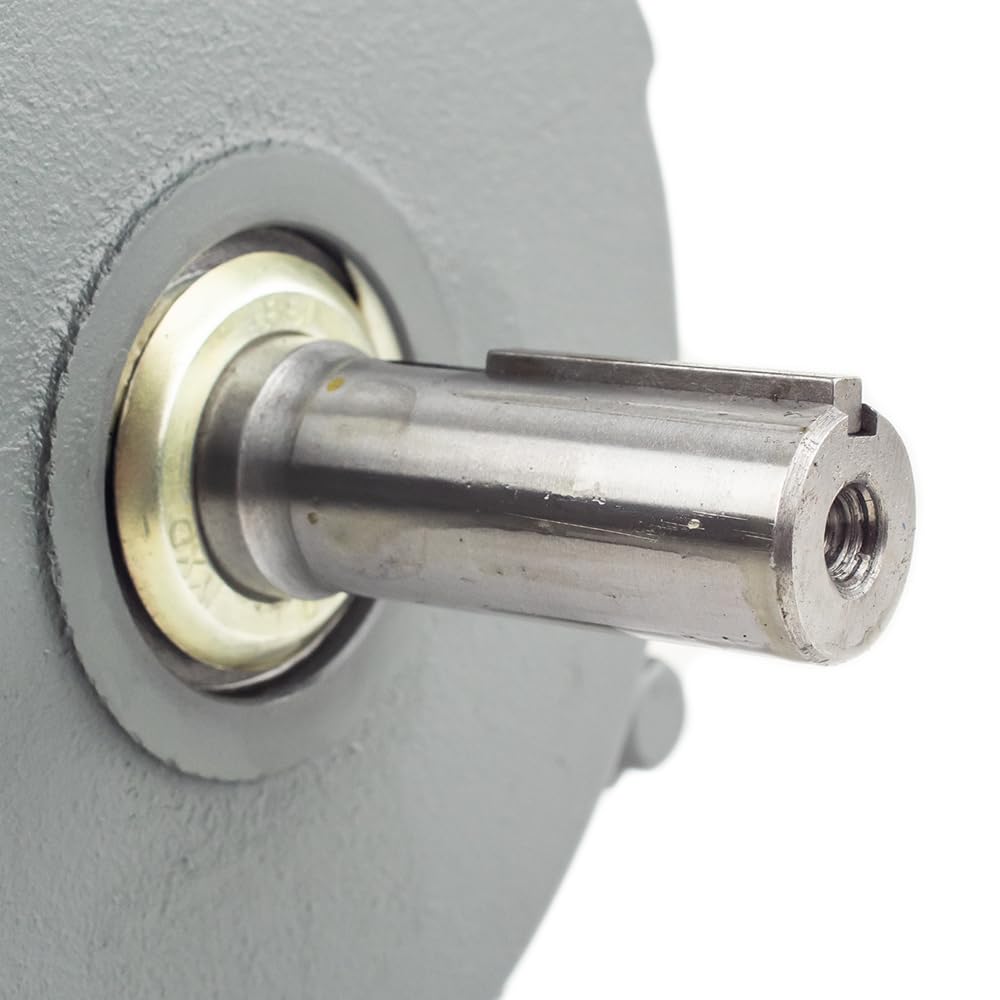

Worldwide Electric 1 HP 3 Phase Electric Motor Brand new 1 horsepower, 3 phase premium efficiency severe duty electric motor with a rigid base. Worldwide Electric designs and manufactures motors with quality and reliability in mind. This motor features Class F insulation, fan cooling, a 1.25 service factor (1.00 at 50Hz), and is a premium efficiency severe duty motor. Designed for 60Hz, features a TEFC / IP55 enclosure, and is a 143T frame. Specifications: 1 Horsepower 3 Phase TEFC / IP55 Fully Enclosed 143T Frame Service Factor 1.25 Class F Insulation 46.7 LBS 230/460 Volt 1755 RPM Fan Cooled Worldwide Electric Brand Keyed 7/8" Diameter Shaft Current: AC Full Load Amps: 3.2/1.6 (Usable on 208V network at 3.5 amps) 60 HZ Shaft Material: 1045 Carbon Steel NEMA Design B Max Temp: 40 Degrees C
- 1 Horsepower
- 3 Phase
- TEFC / IP55 Fully Enclosed
- 143T Frame
- Service Factor 1.25
| UPC | 684659127020 |
|---|---|
| Model | PEWWE1-18-143T |
| Speed | 1800 RPM |
| Voltage | 460 Volts |
| Brand Name | Worldwide Electric |
| Horsepower | 1 Horsepower |
| Model Name | PEWWE1-18-143T |
| Item Weight | 46.7 Pounds |
| Part Number | PEWWE1-18-143T |
| Manufacturer | Worldwide Electric |
| Material Type | Cast Iron |
| Included Components | 1 Motor |
