7/8 x 7/8-14 Heim Joint Rod End Kit for Steering and Suspension, with 7/8-1/2 HMS Spacers and .120 Wall Bung RH and LH Hand Thread Chromoly Bar Kit, Fit for Jeeps Mega Trucks Diesel Trucks

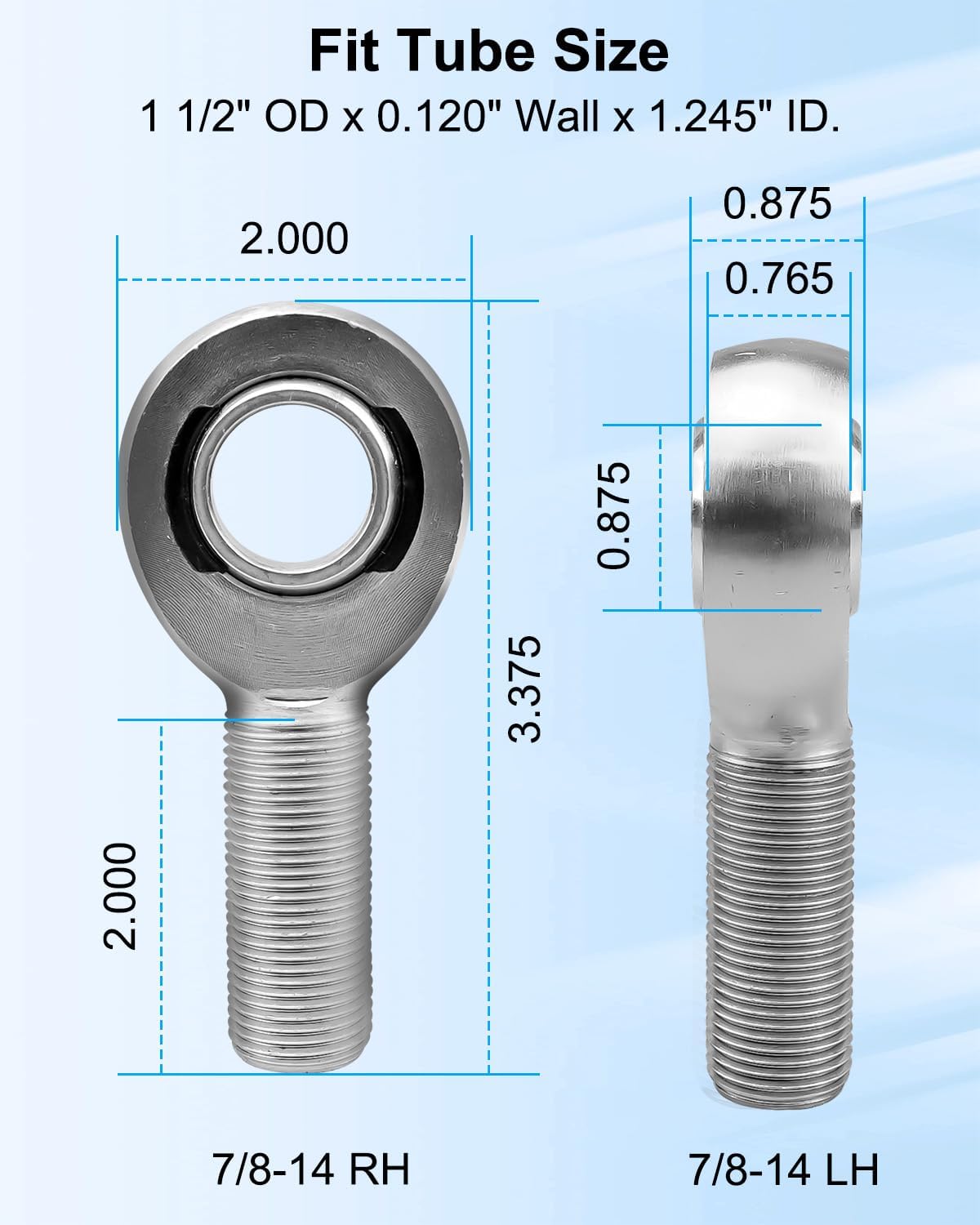

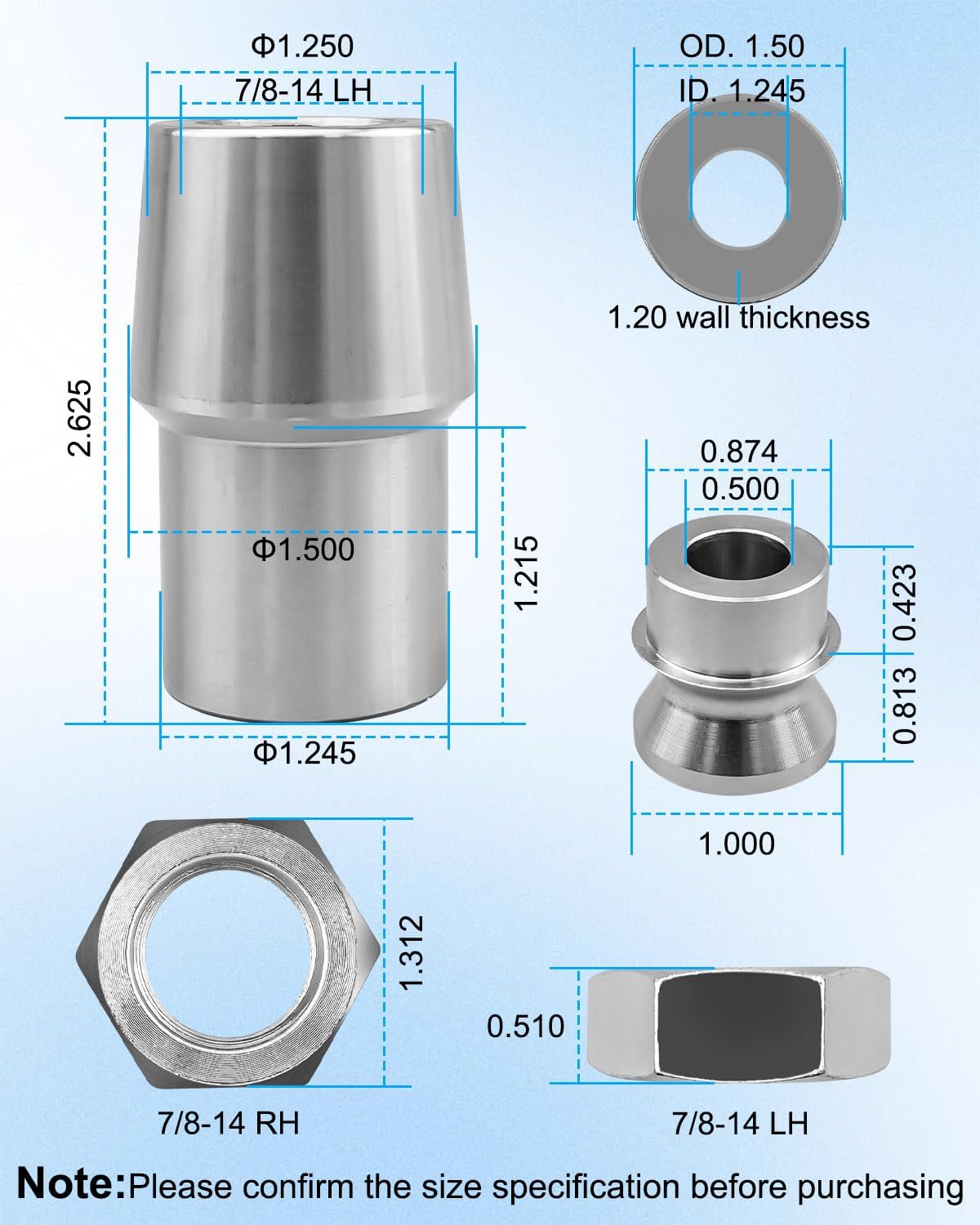

Rod End (XML14 & XMR14) Material: Heat Treated Chromoly, Hard Chrome Plated, Loader Slot Rod End Thread Size: 7/8"-14 Ball Bore: .875" Ball Width: .875" Centerline Length: 3.375" Thread Length: 2" Load Capacity: 45,051lbs Bung (1.25” ID tube adapter) Material:Chromoly Thread Size: 7/8"-14 Bung Size: 1 1/2" OD x 0.120" Wall x 1.245" ID. High Misalignment Spacer Specs Material: Zinc Plated Carbon Steel Insert Dia: .875 Inside Bore: .500 Overall Length In Ball: 2.5 Approximate Degrees: 52 Jam Nut (JNL14S & JNR14S) Thread: 7/8"-14 Width: Max 1.312"-Min 1.269" Height: Max 0.510"-Min 0.458" Carbon Steel,Zinc Plated After-Sales: If you have any questions, please feel free to contact us, we will get back to you within 12 hours

• Heavy-duty Material: Heim joint rod end kits are made of heat-treated C1045 steel, silver-zinc plated, precision ground and heat-treated, with a load capacity of up to 45051 pounds, not easy to wear or deform, and can maintain stability under long-term, high-intensity use conditions
• Product Specifications: Rod end dimensions are 7/8" shaft, 14 TPI, 1.25" ID Tube Adapter, fits tube size: 1 1/2" OD x 0.120" wall x 1.245" ID. Please confirm size specifications before purchasing
• Wide Application: Suitable for steering and suspension, steering joints, drawbars and linkage joints on modified vehicles, perfect for suspension and steering linkage modifications on trucks, 4x4 off-road vehicles, sand rail vehicles and jeeps, providing excellent handling and stability for the vehicle
• Easy to Install: Component structure is simple and clear, and can be flexibly adapted to different modification needs by welding or using additional hardware, the included locking nut and bushing assembly ensures that the components are tightly combined, improving the stability and reliability after installation
• Product Contents: 1 x right-hand thread fitting kit, 1 x left-hand thread heim fitting kit with lock nut and bushing assembly
